      What is included with my WingtraOne?

      Here, we'll go through a list of what is included in the delivery of every WingtraOne package.

      Your WingtraOne is shipped with the following accessories:

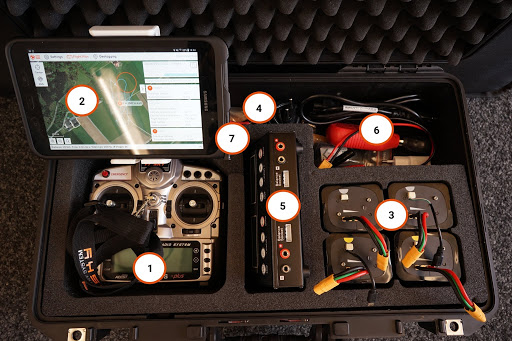

      Pilot box



      WOP_PilotBoxOpen_mod



      1. Remote control (RC)
      2. Tablet
      3. Flight batteries (2 flight sets)
      4. Telemetry
      5. Charger
      6. Charging cables, wind measuring tool, tablet SD card adapter
      7. Pitot covering tool, SD card adapter, Hex-wrench tool

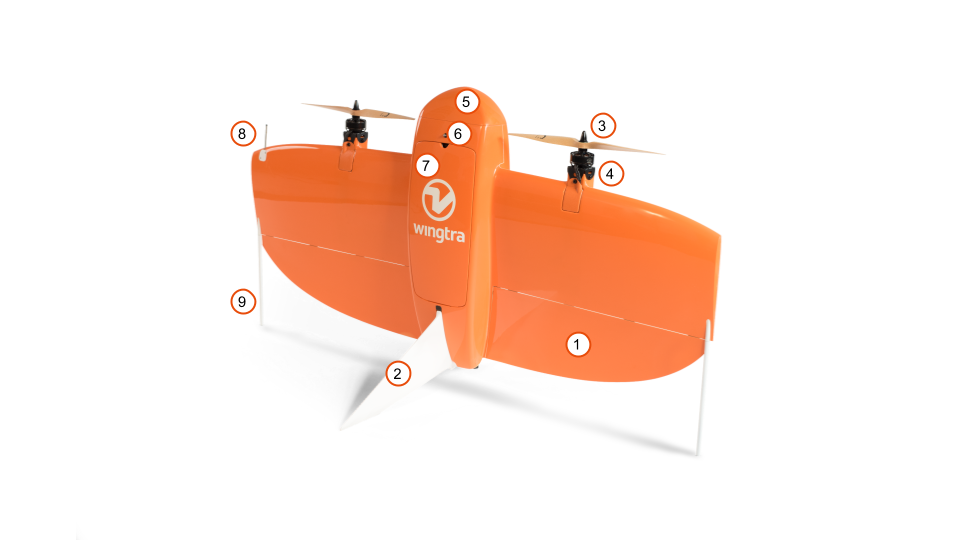

      WingtraOne

      wingtraone_v2_labelled_top

      1. Flaps
      2. Middle stand
      3. Propellers
      4. Motors
      5. Battery compartment
      6. Ready-to-fly button (no longer used for arming)
      7. Top cover—access to camera, electronics
      8. Airspeed sensor (pitot tube)
      9. Side stands

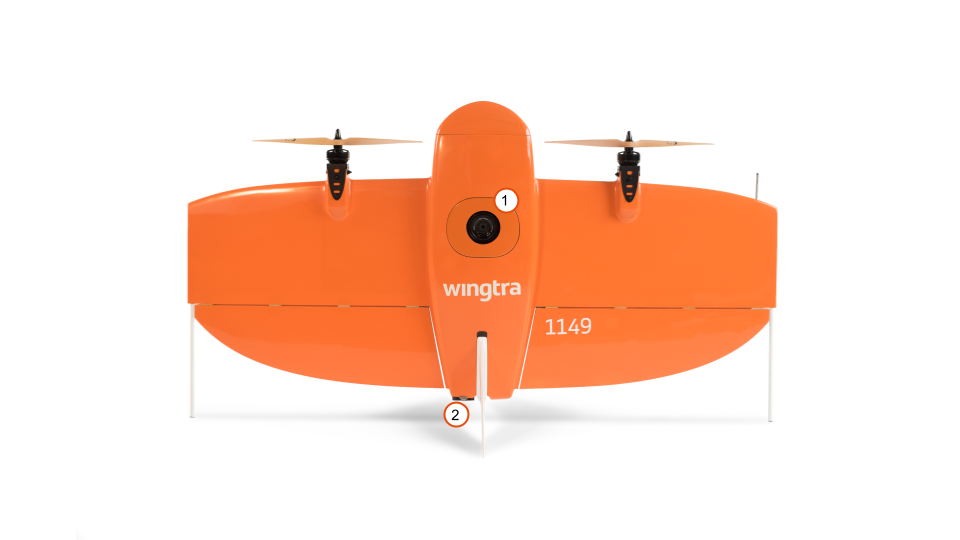

      wingtraone_v2_labelled_camera

      1. Payload (camera)
      2. Distance sensor

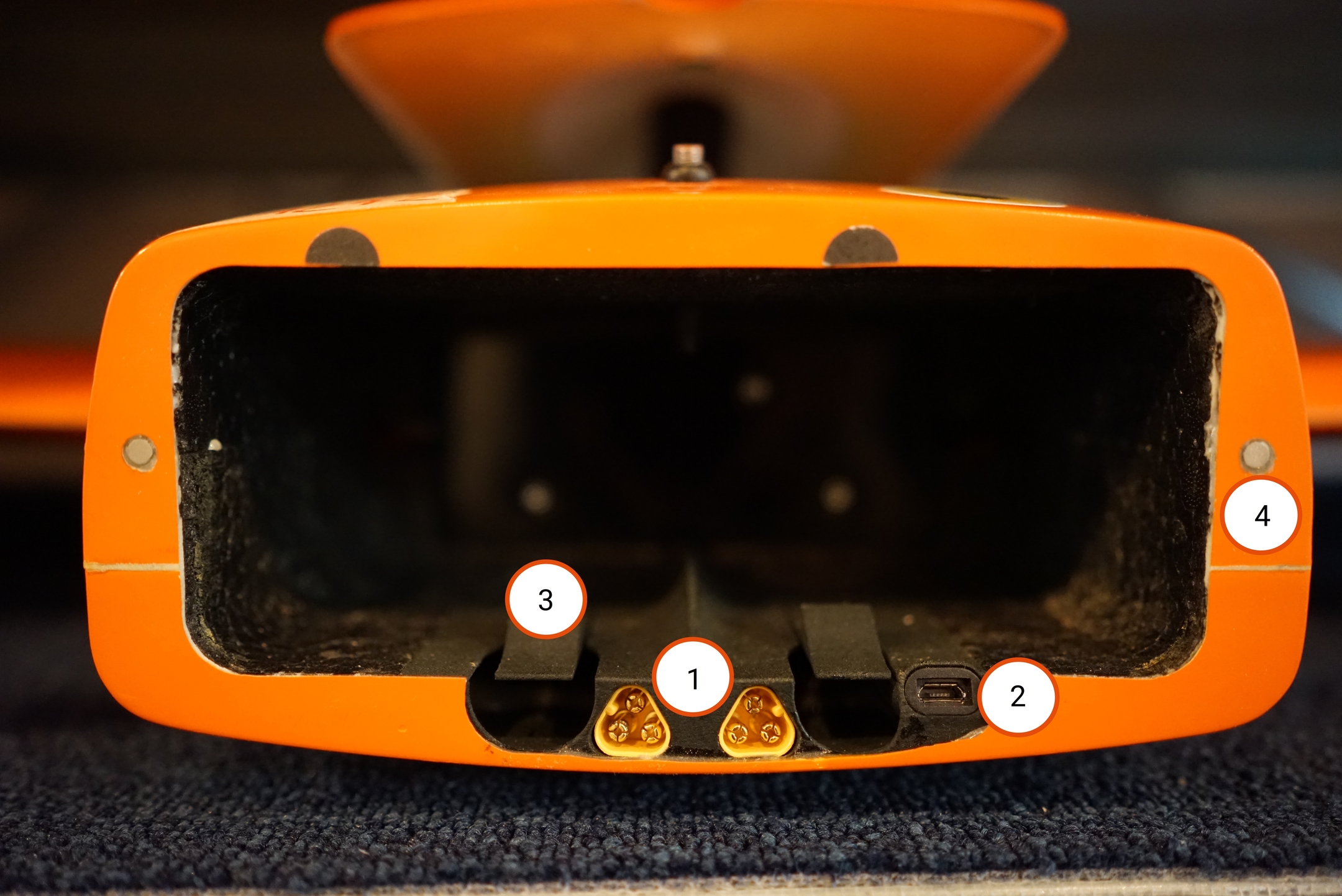

      Battery compartment

      WOP_BatteryBay_mod



      1. Battery connectors
      2. Battery micro USB connector
      3. Battery holder
      4. Magnet to hold the top cover

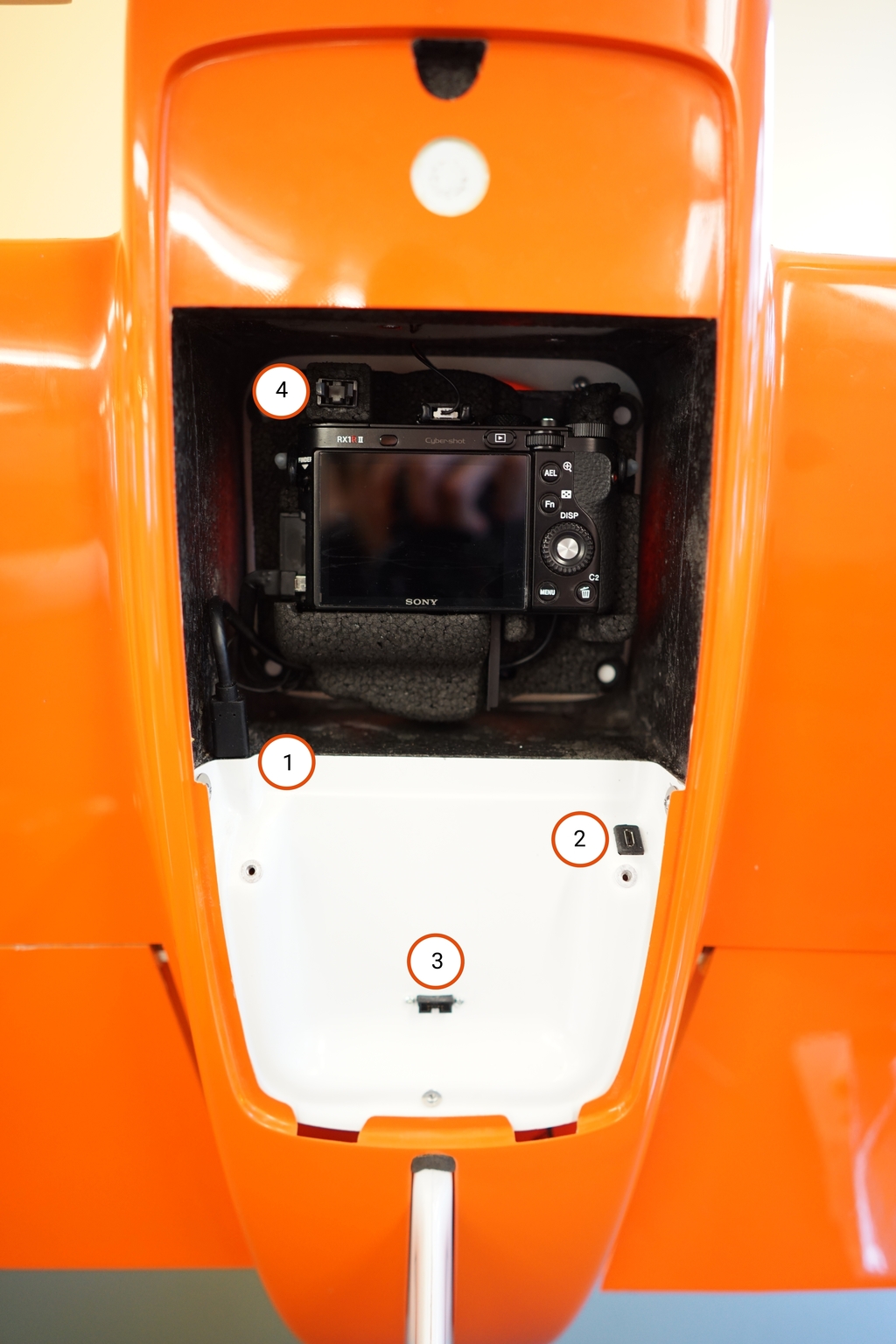

      Payload belly (sample image with RX1 payload)

      WOP_PayloadArea_mod



      1. Universal payload connector (USB-C)
      2. MicroSD card to micro USB adapter connector
      3. PPK port
      4. PPK lid-locking mechanism

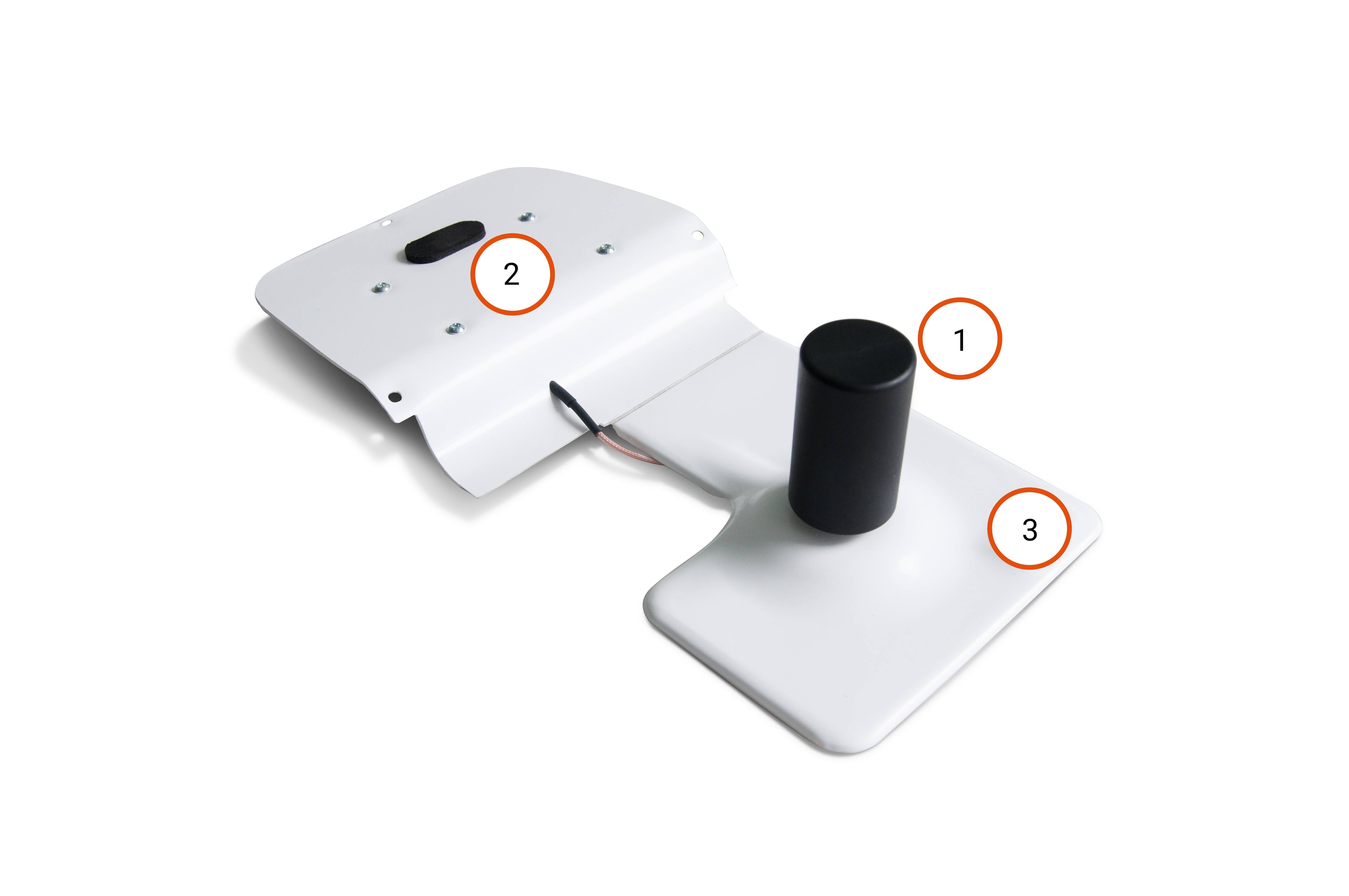

      PPK add-on (optional)

      WOP_PPKModule_mod

      1. PPK antenna
      2. PPK electronics
      3. PPK lid-locking mechanism
