      Changing between RGB cameras

      Learn how to change between RGB cameras on your WingtraOne

      Required Equipment

      • WingtraOne
      • Torx screwdriver
      • New mount and new camera
      • Micro USB storage adapter with SD card (only for QX1 camera)

      Step by step instructions

      The instructions should be followed carefully. Deviating from the described procedure can lead to damage on the sensor and hence faulty images. Loose payloads or shifted CG can make WingtraOne crash.

      1. Make sure the WingtraOne is not powered

      2. Lay down the WingtraOne on a flat surface

      image9-2

      3. Open the top cover

      remove_3

      4. If changing from QX1 to RX1 camera, remove the micro USB SD card reader from the micro USB connector on WingtraOne

      step4

      5. Open the PPK cover by using the push button (if applicable)

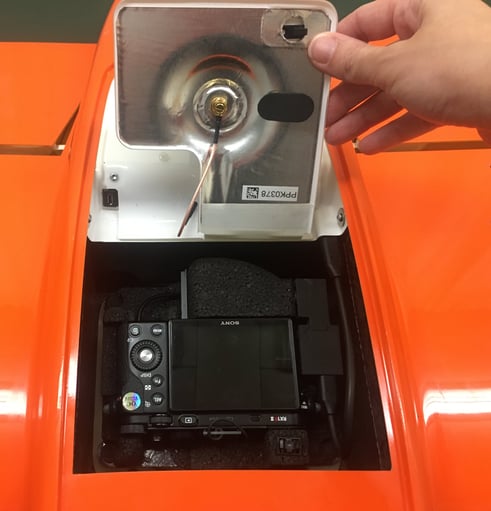

      step5-3

      6. Unplug the USB-C universal payload connector by pulling the cable out

      step6-2

      7. Use the torx screwdriver to open the four screws in each corner of the payload area. Note that the screws are attached to the camera mount. You do not need to worry about losing them inside

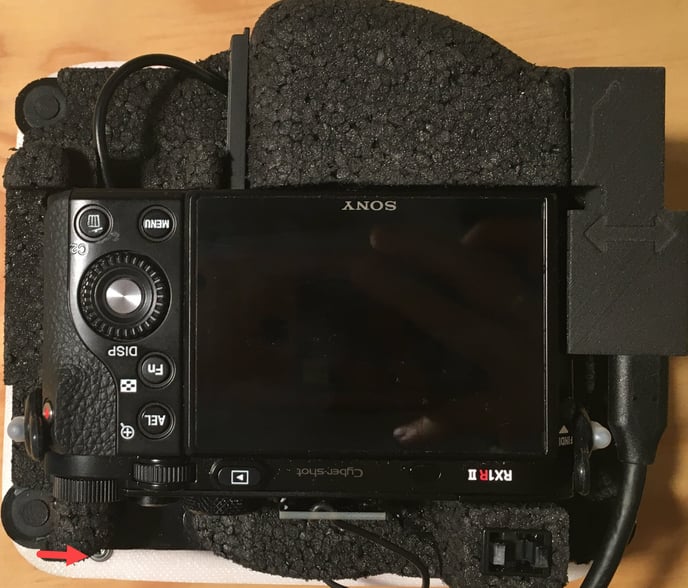

      step7

      8. Lift out the camera mount assembly

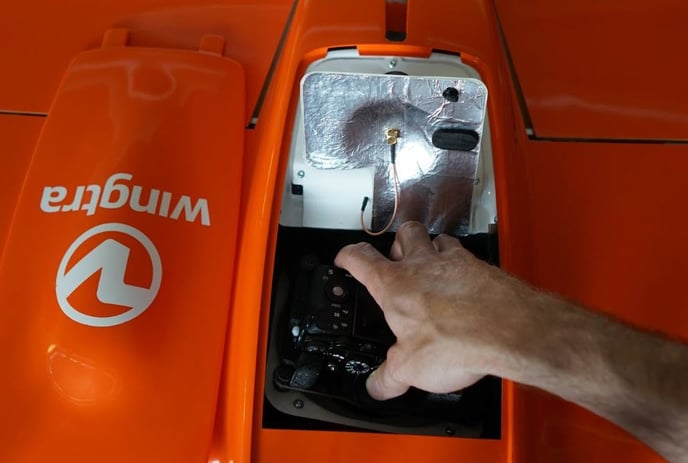

      step8-2

      9. Insert the new camera mount with camera

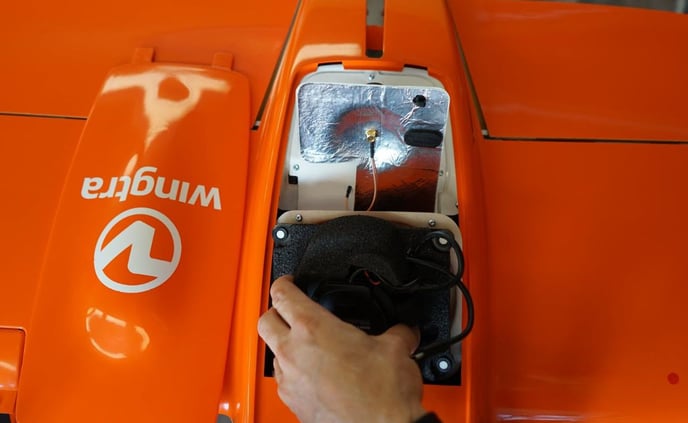

      step9-1

      10. Tighten the screws in all four corners using the torx screwdriver

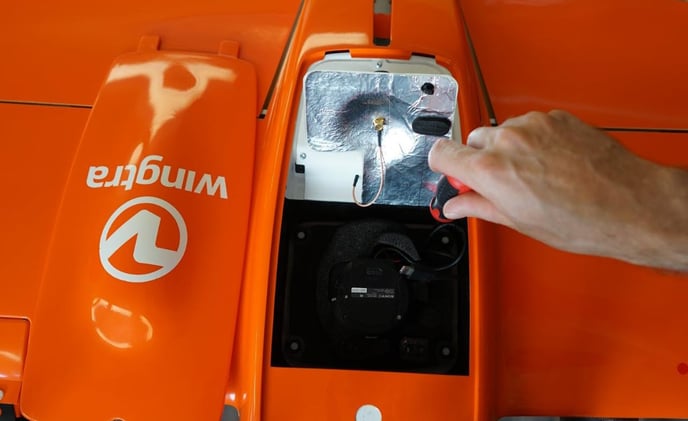

      step10-1

      11. Plug in the USB-C universal payload adapter

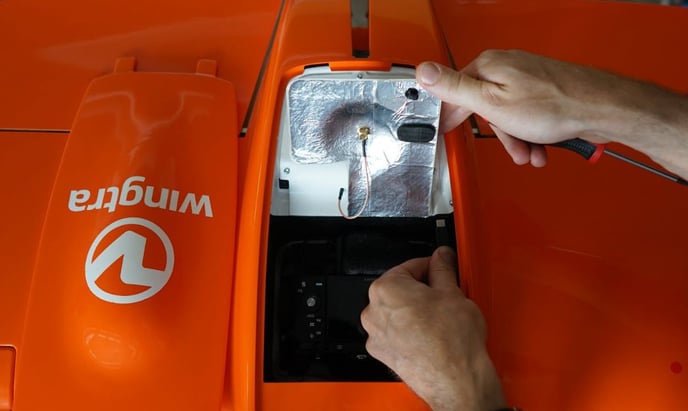

      step11-1

      12. Close the PPK lid (if applicable)

      13. If changing to QX1 camera, make sure to have the SD card inserted in the micro USB SD card adapter and insert the adapter to the micro USB connector on WingtraOne

      14. Close the top cover

      image9-2

      15. Finalize the WingtraOne setup with the new RGB camera. To do so:

      a. Power on WingtraOne

      b. Open the WingtraPilot app and connect the telemetry antenna to connect to WingtraOne

      c. Create a new flight plan and make sure to select the right camera when going
      through the wizard

      d. The new RGB camera will be detected and WingtraPilot will prompt you to repower WingtraOne to initialize it correctly

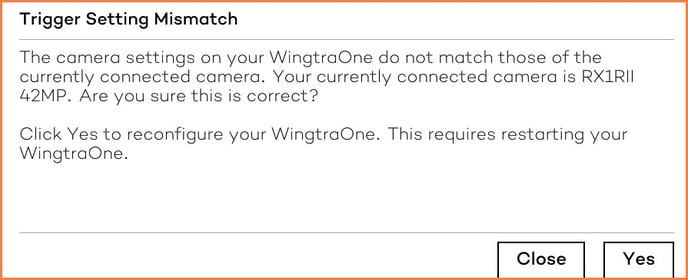

      step14d-2

      e. Confirm by clicking "Yes"

      f. Repower WingtraOne to save the new camera configuration on WingtraPilot.
